Ozone Technology Solutions for Ultrapure Water Loops

Water purity is a critical component of product quality. Ultrapure water is treated to the highest standards by eliminating contaminants and microorganisms.

Ozonia MEMBREL electrolytic ozone technology is the ultimate solution for ultrapure water disinfection applications.

MEMBREL electrolytic ozone generators create ozone directly from ultrapure water H2 O > H2 O + H+ + O3

Benefits Of Electrolytic Ozone Systems

• Minimize costs
• Safe from contamination
• Increase production up-time

Ultrapure water loop applications

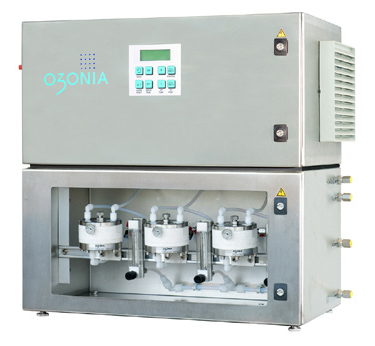

| ozone | Ozonia® MEMBREL® MkIV

Production: 3g O3 /h - 9g O3 /h

Main features

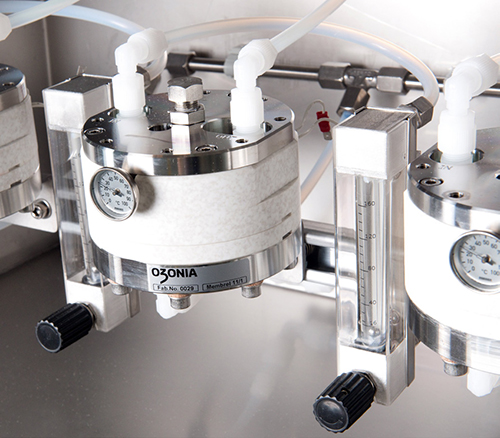

• Electrolytic ozone generator produces ozone diretcly from ultrapure water
• Complies with FDA, EN, IEC, ISO, and CE requirements
• Easily increase capacity for water system by adding ozone production cells
• Instant start-up with zero warm-up time
• Easily integrated into existing water systems
• Small footprint and remote control capability
• No separate source of feed gas required

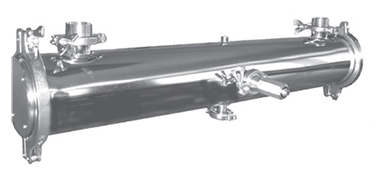

| UV | Aquaray® LPTS

Flow rate: 10 to 33 m3/h

Main features

• Eliminate residual ozone prior to points-of-use
• UV technology-based ozone destruction and disinfection
• TRICLAMP sanitary connections
• Low capital, operation and maintenance costs
