Spiral JetMill Solutions
With spiral jet mill technology the size reduction is achieved by collisions between particles of the substance, previously accelerated by high-speed jet streams. Target PSD is generally below 30μm when adopting this technology.
About Spiral Jet Mill:
With spiral jet mill technology the size reduction is achieved by collisions between particles of the substance, previously accelerated by high-speed jet streams. Target PSD is generally below 30μm when adopting this technology.
The main advantages are represented by:
- Easy Cleaning for Validation (to avoid cross contamination)
- No mechanical parts in movement (no lubrication, strong reduction of metallic contamination)
- No Heat Generation
- Constant Temperature
Working principle:
- High pressure gas (typically Air or Nitrogen), from 2 up to 12 barg
- Product particles acceleration in the milling chamber
- Particle to particle collision for product fragmentation
- Static classification
Production Unit

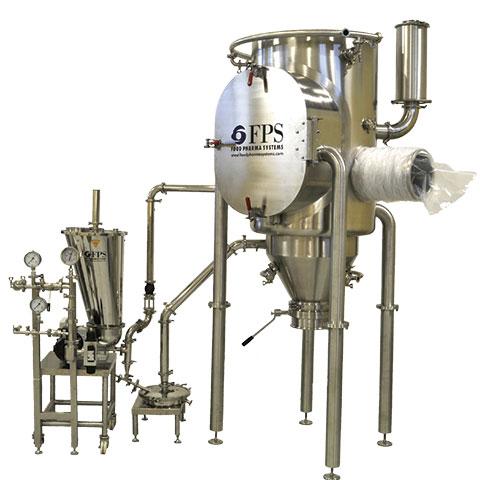

ProMill-8
The ProMill-8 jet mill is designed for production needs. The typical batch sizes is between 2kg and 1000kg. It's available in two configurations, cosmetic/chemical and pharmaceutical, to better-fit different requirements.
At FPS R&D and test center it's possible to perform technical trials with products on ProMills.
ProMill-8 unit is available in:
- ATEX configuration
- with PLC control system
- with interchangeable inserts (AISI316L, HC-22, PTFE, HDPE or ceramic)
- WIP /CIP

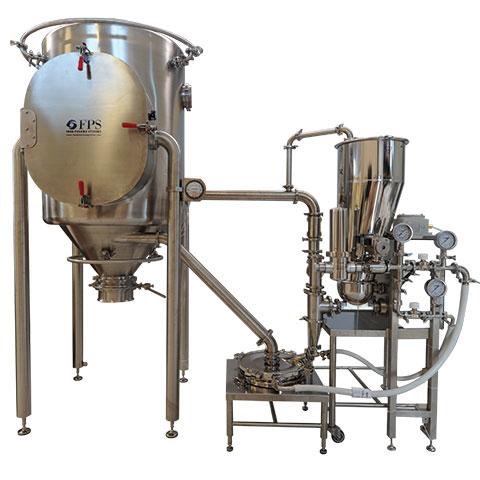

ProMill-12
TThe ProMill-12 jet mill is designed for production needs. Typical batch sizes is between 5kg and 2500kg. It is available in two configurations, chemical and pharmaceutical, to better-fit different requirements.
At FPS R&D and test center it’s possible to perform technical trials with products on ProMills.
ProMill-12 unit is available in:
- ATEX configuration
- with PLC control system
- with interchangeable inserts (AISI316L, HC-22, PTFE, HDPE or ceramic)
- WIP /CIP

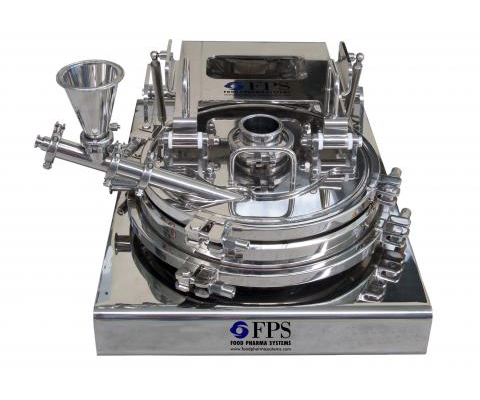

ProMill-16
The ProMill-16 jet mill is designed for production needs. Typical batch sizes is between 20kg and 5000kg. It is available in two configurations, chemical and pharmaceutical, to better-fit different requirements.
At FPS R&D and test center it’s possible to perform technical trials with products on ProMills.
ProMill-16 unit is available in:
- ATEX configuration
- with PLC control system
- with interchangeable inserts (AISI316L, HC-22, PTFE, HDPE or ceramic)
- WIP /CIP
